45 mm full-extension ball bearing drawer slide product illustration

45mm 3-fold Ball Bearing Drawer Slide

45mm-wide, 3-fold full-extension ball bearing slide in cold rolled steel. Zinc-plated and black-plated finishes; lengths from 250 to 600 mm and a 30–45 kg load capacity for standard versions.

Real specs from catalog

Enquire About This Product Get a Quote

Please include the model, required configuration, estimated quantity and destination country in your enquiry.

Drawer Slides

Technical specifications

Confirm the selected length, finish and load configuration when enquiring.

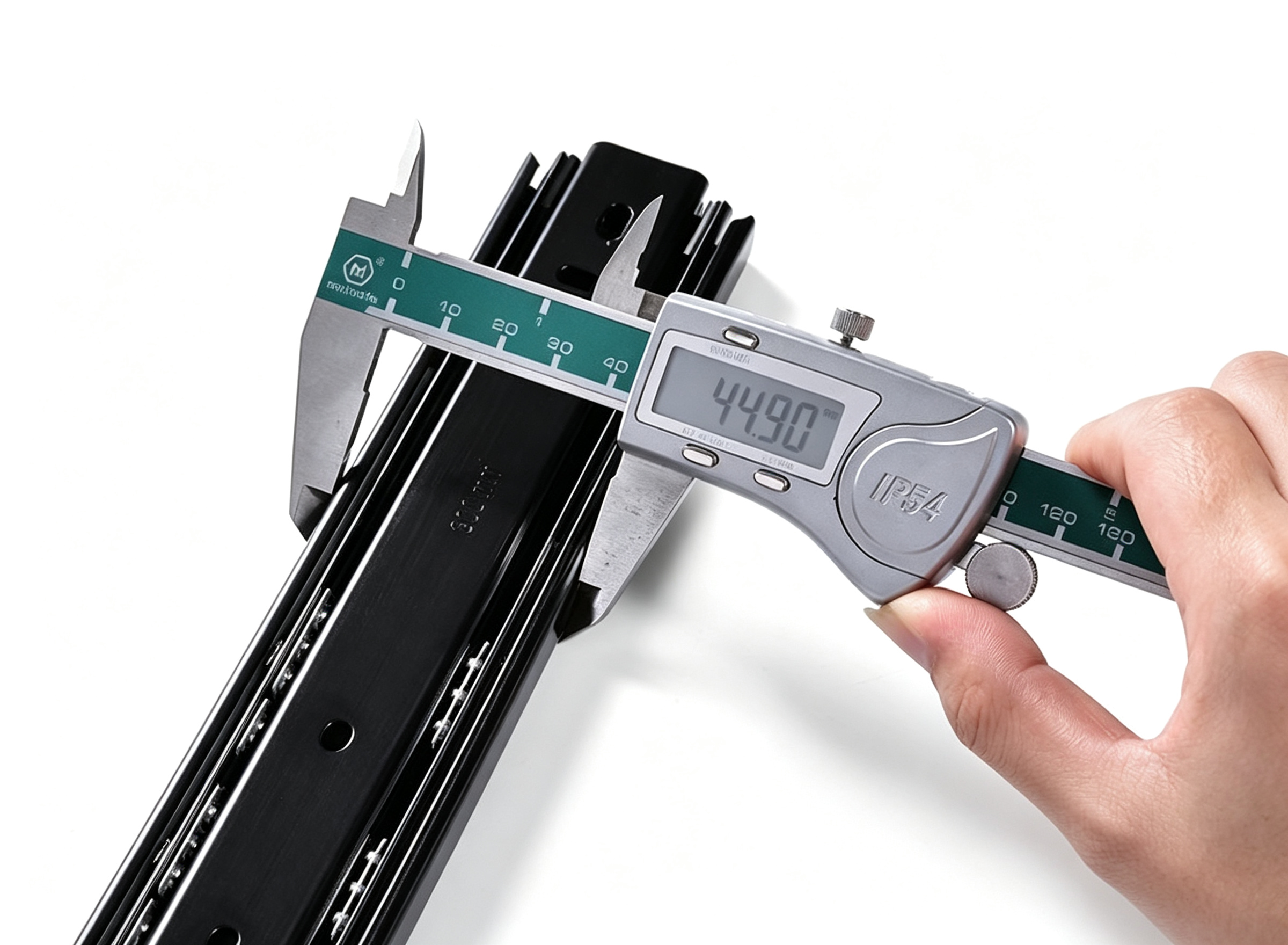

Width	45 mm

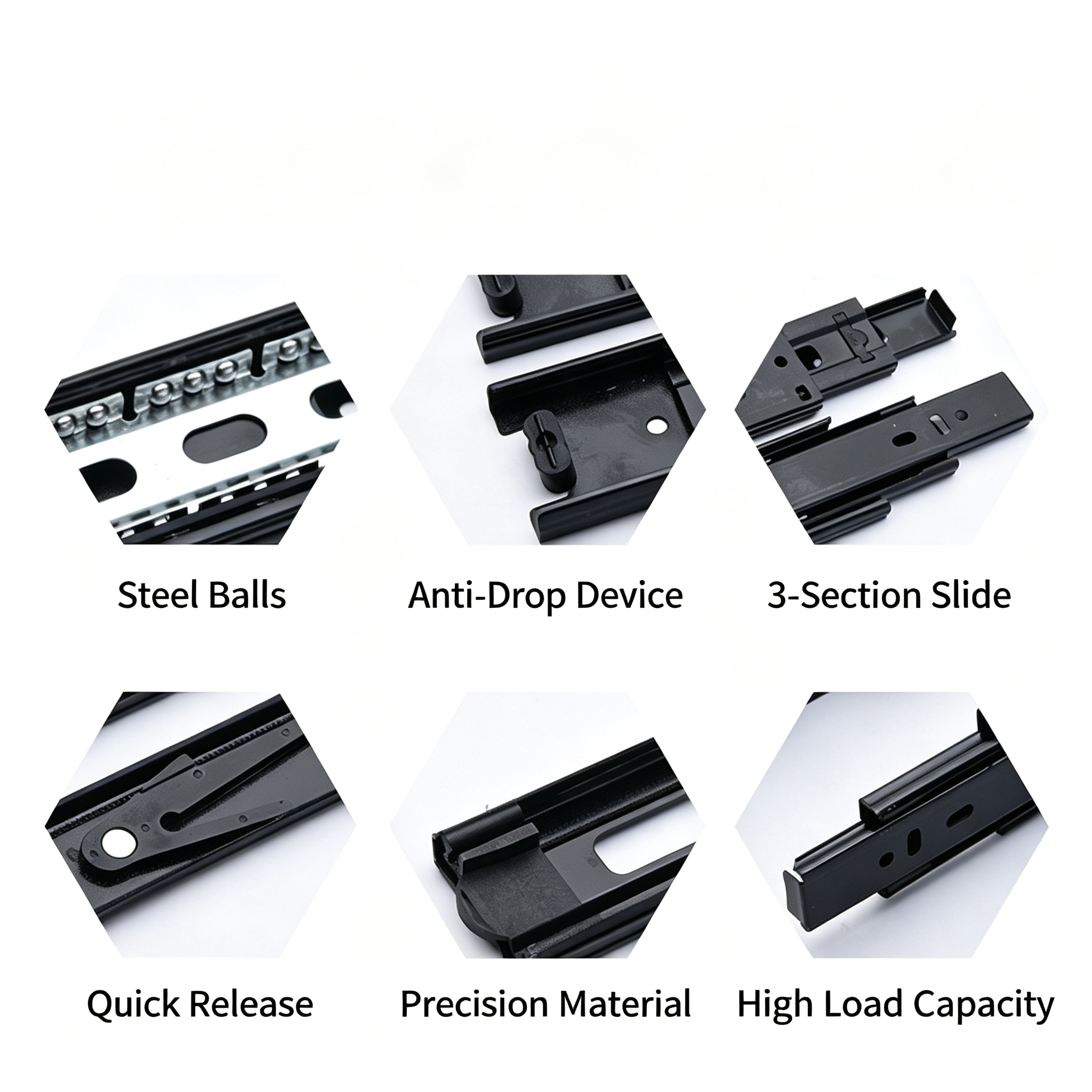

Structure	3-section / 3-fold full extension
Material	Cold rolled steel

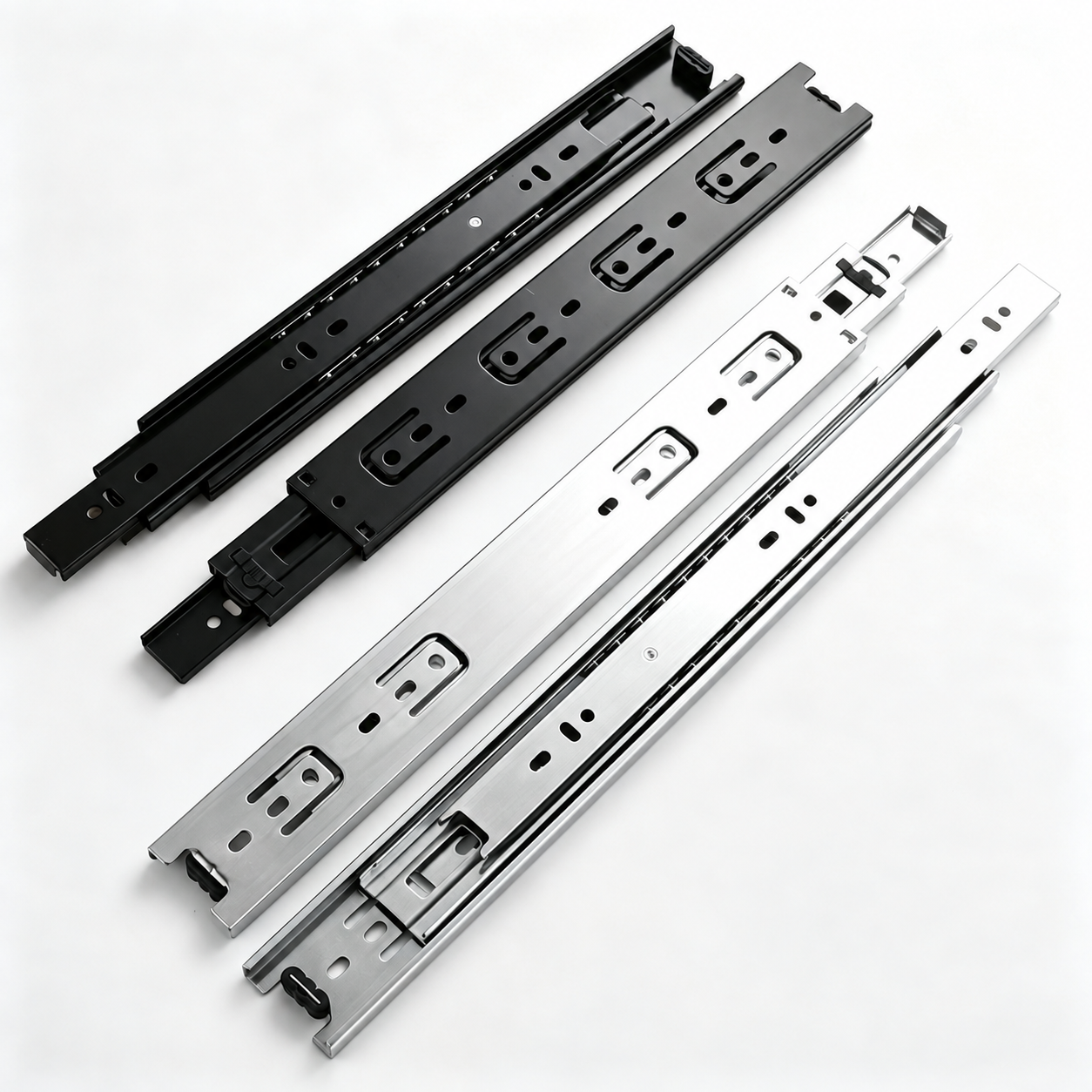

Surface Finish	Zinc plated / Black plating
Load Capacity	30–45 kg (standard versions)
Available Length	250, 300, 350, 400, 450, 500, 550, 600 mm
Function	Ball bearing sliding
Thickness options	1.0 / 1.0 / 1.2 mm 1.2 / 1.2 / 1.5 mm
