45mm 3-Section Full Extension Push-to-Open Soft Close Ball Bearing Drawer Slide

ZG-DS308-10 is a 45mm-wide, three-section full-extension side-mount slide with a push-to-open rebound system and a built-in soft-close damper — a handle-free drawer solution. Available in lengths of 250–600 mm, rated load 30–45 kg per pair.

ZG-DS308-10Push-to-OpenSoft Close

Enquire About This Product Enquire

Please include the model, required configuration, estimated quantity and destination country in your enquiry.

Drawer Slides

Technical specifications

Confirm the selected length, finish and load configuration when enquiring.

Model No.	ZG-DS308-10 (PO = Push-to-Open; SC = Soft Close)
Width	45 mm
Extension	Full Extension, 3-section

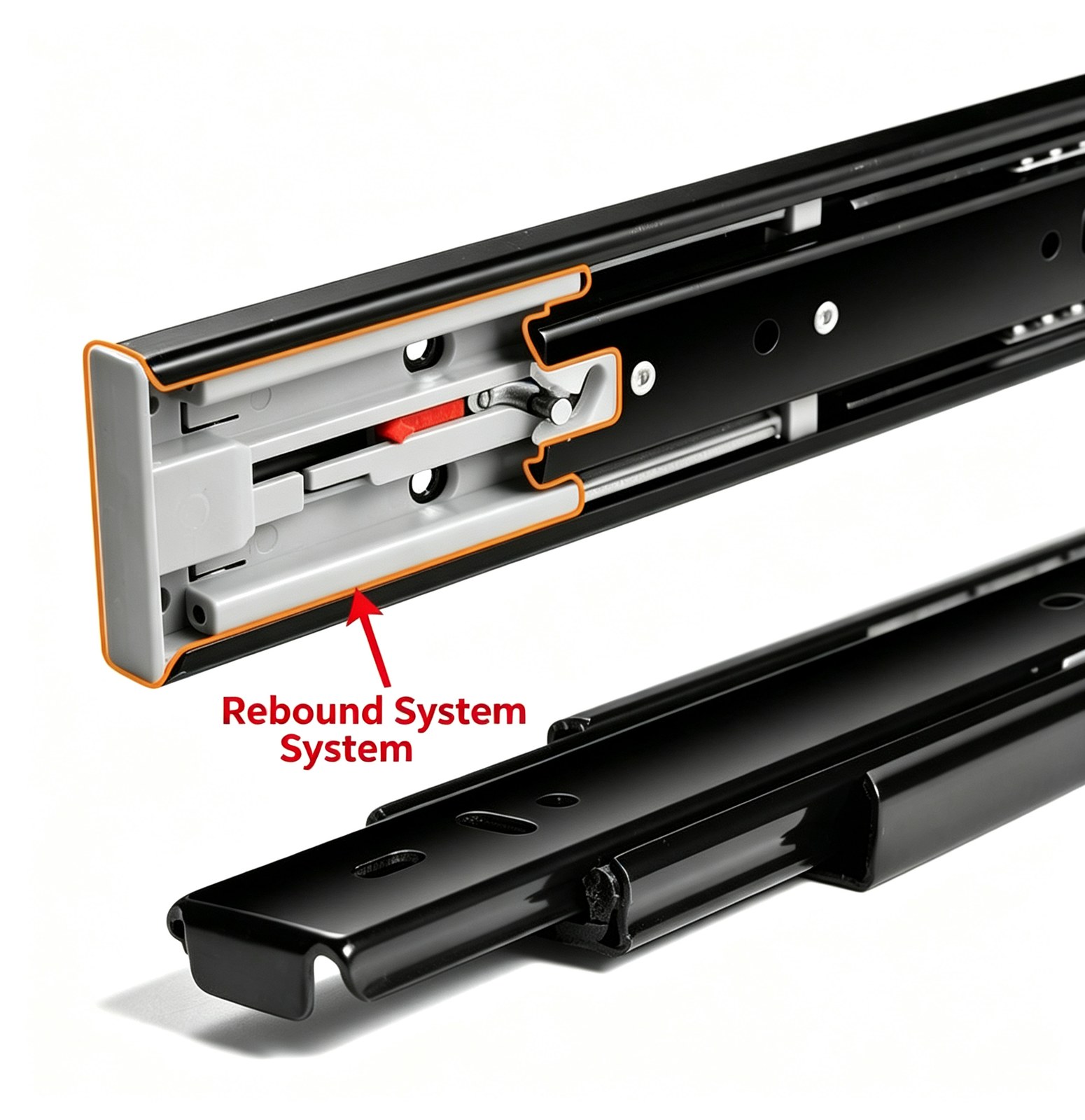

Function	Push-to-open rebound system + built-in soft close damper; no-handle design

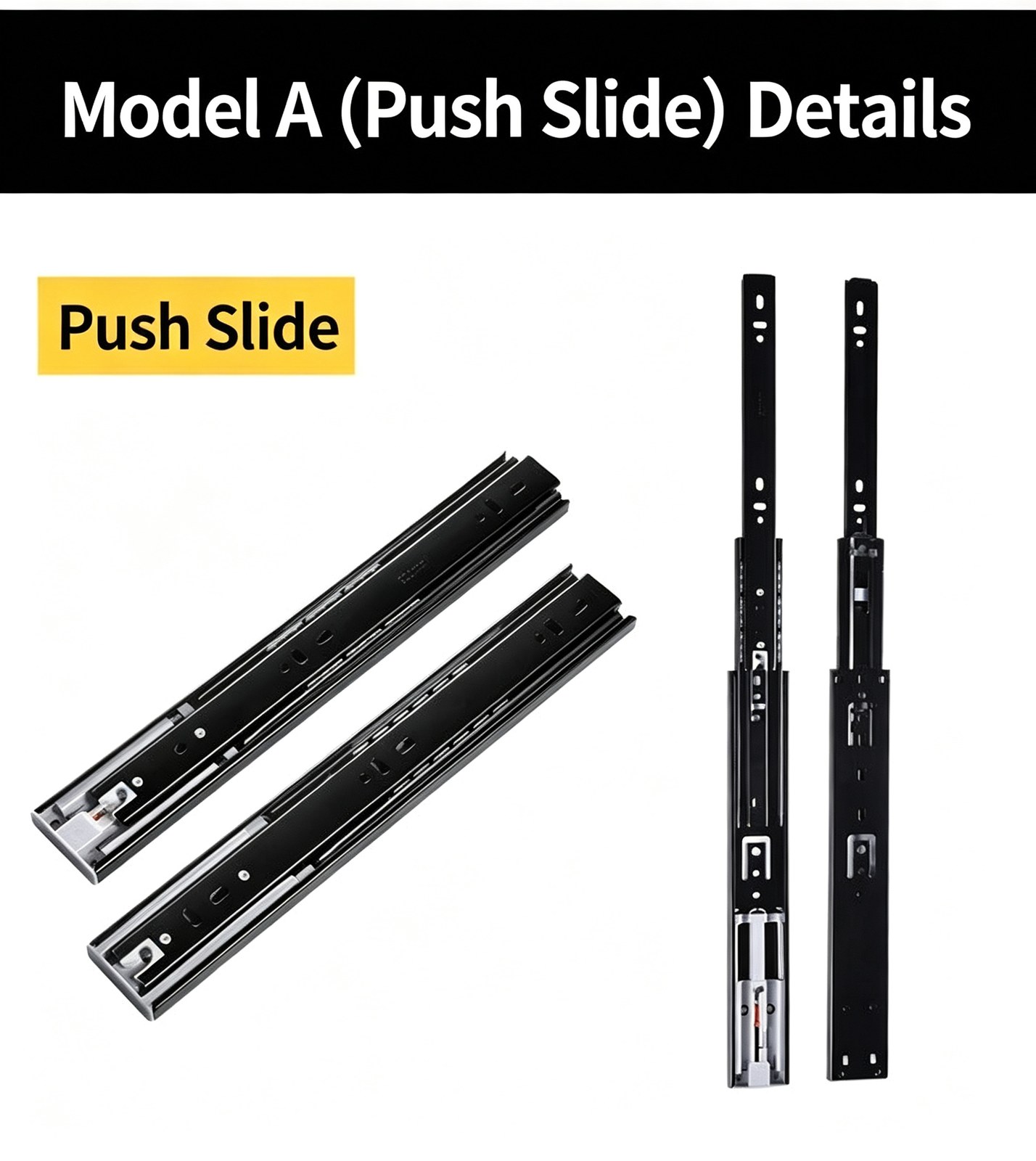

Structure	Ball bearing, side mount
Available length	250–600 mm (10″–24″)
Material	Cold Rolled Steel; Stainless Steel available
Thickness	1.0 / 1.0 / 1.2 mm; 1.2 / 1.2 / 1.5 mm
Load capacity	30 kg / 45 kg per pair

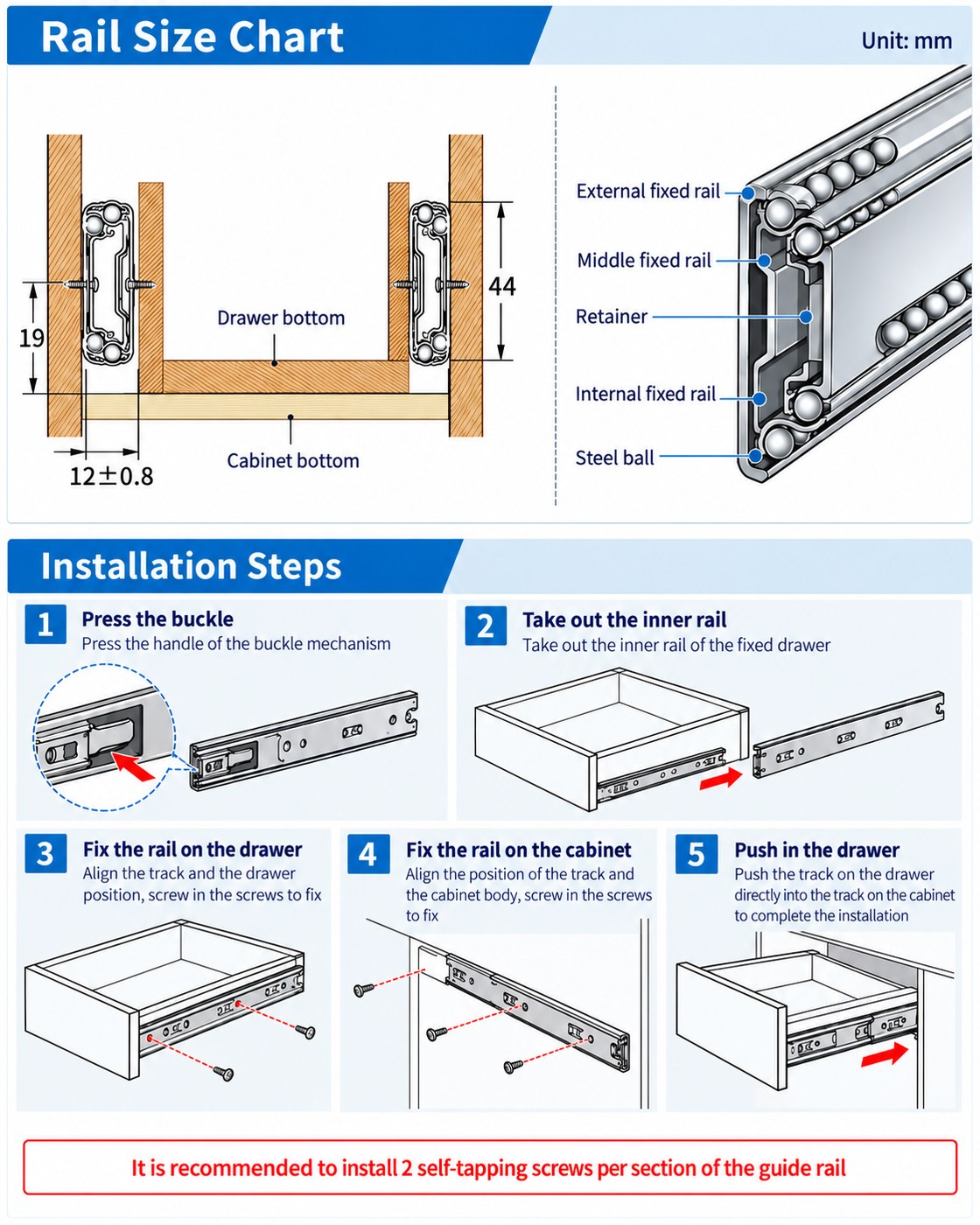

Side clearance	12.7 mm
Finish	Zinc plated / Black electrophoresis
