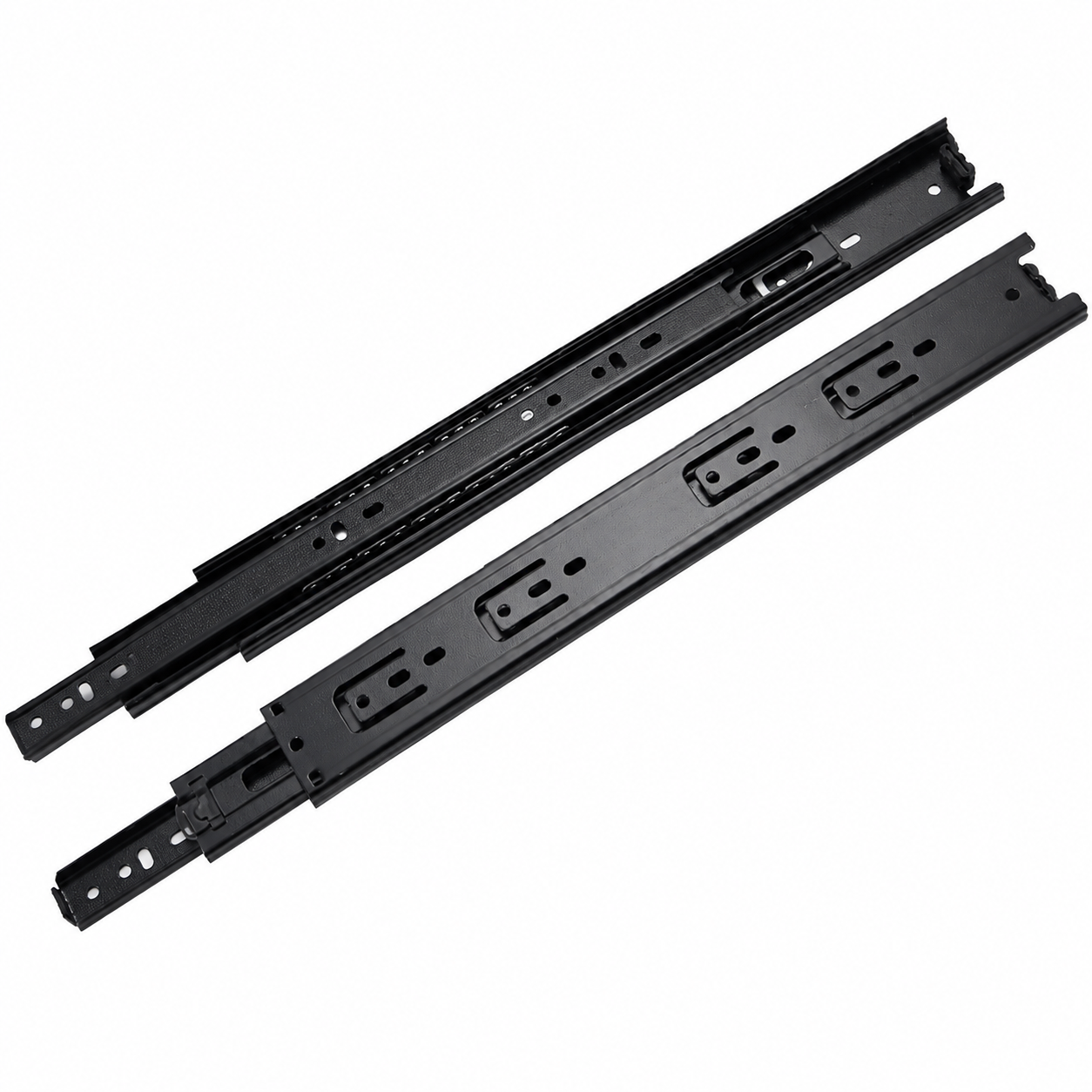

45mm 3-Section Full Extension Soft Close Ball Bearing Drawer Slide

4501-10 is a 45mm-wide, three-section full-extension side-mount slide with integrated soft-close damping. Available in lengths of 250–600 mm, with a rated load capacity of 35 kg per pair.

4501-10Soft Close

Enquire About This Product Get a Quote

Please include the model, required configuration, estimated quantity and destination country in your enquiry.

Drawer Slides

Technical specifications

Confirm the selected length, finish and load configuration when enquiring.

Model No.	4501-10
Width	45 mm
Extension	Full Extension, 3-section

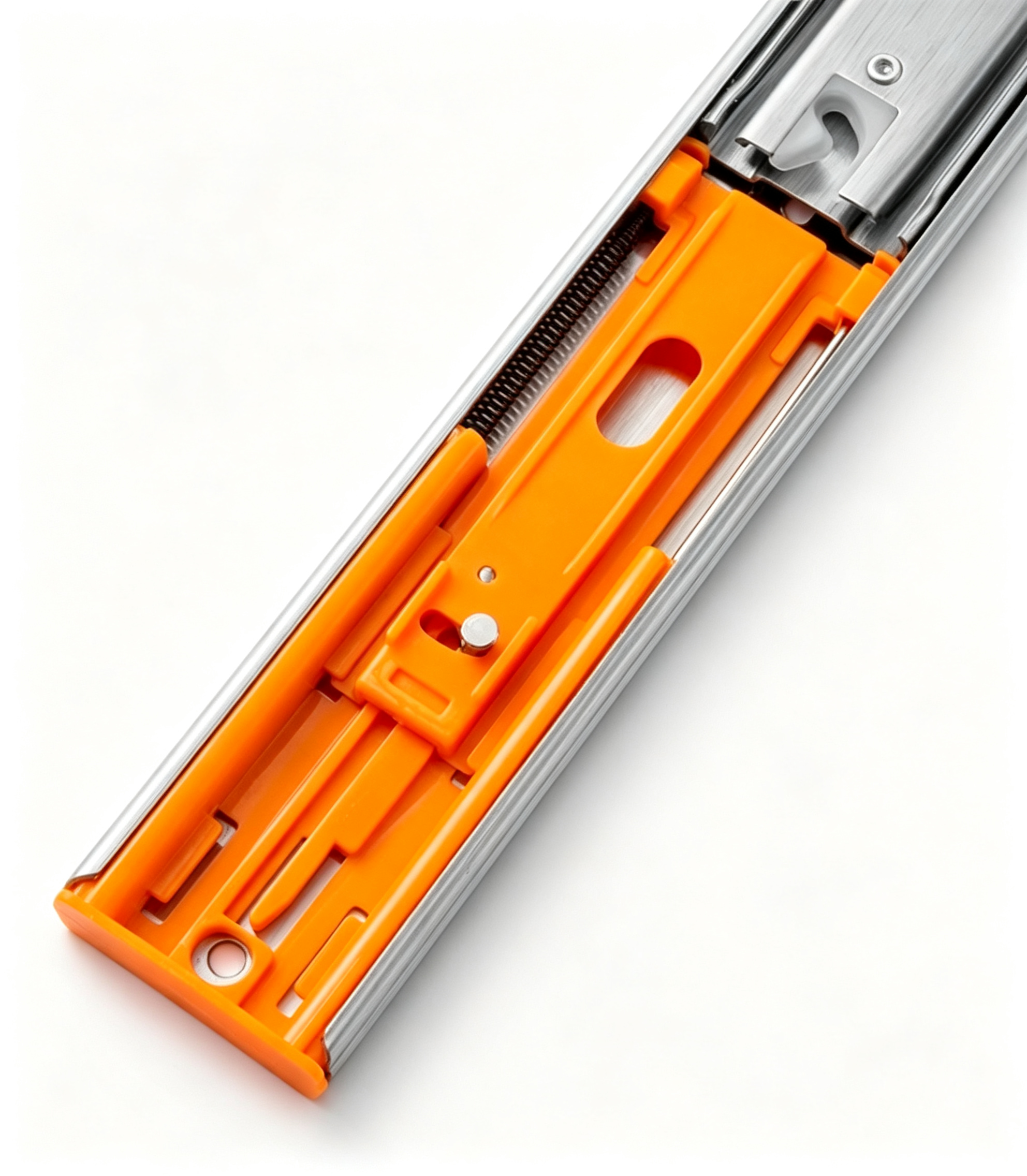

Function	Soft Close / Damping buffer

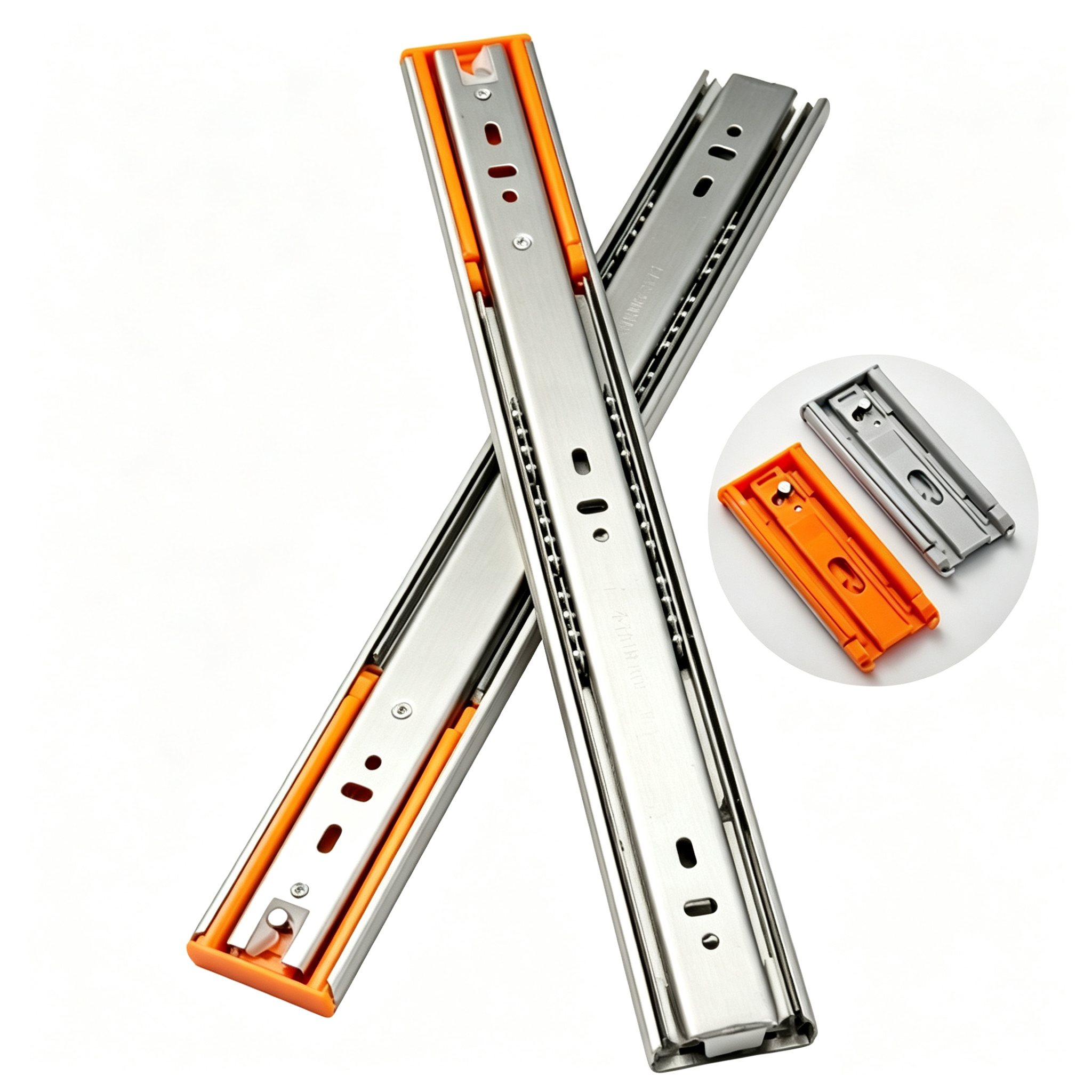

Structure	Ball bearing, side mount
Available length	250–600 mm (10″–24″)
Material	Cold Rolled Steel
Thickness	1.0 / 1.0 / 1.2 mm; 1.2 / 1.2 / 1.5 mm
Load capacity	35 kg / pair
Finish	Zinc plated / Black electrophoresis
