KR-A001 · KR-A003 · KR-A004 · KR-A005
Cabinet Gas Strut / Gas Spring
Eight cabinet gas strut models across the KR-A001, KR-A003, KR-A004 and KR-A005 series. Select the length, force and fitting to suit the cabinet door.
20–300 N6″–12″80,000 cycles
Four paired model styles are shown below. Confirm the required model, force, length, colour and fittings when requesting a quote.

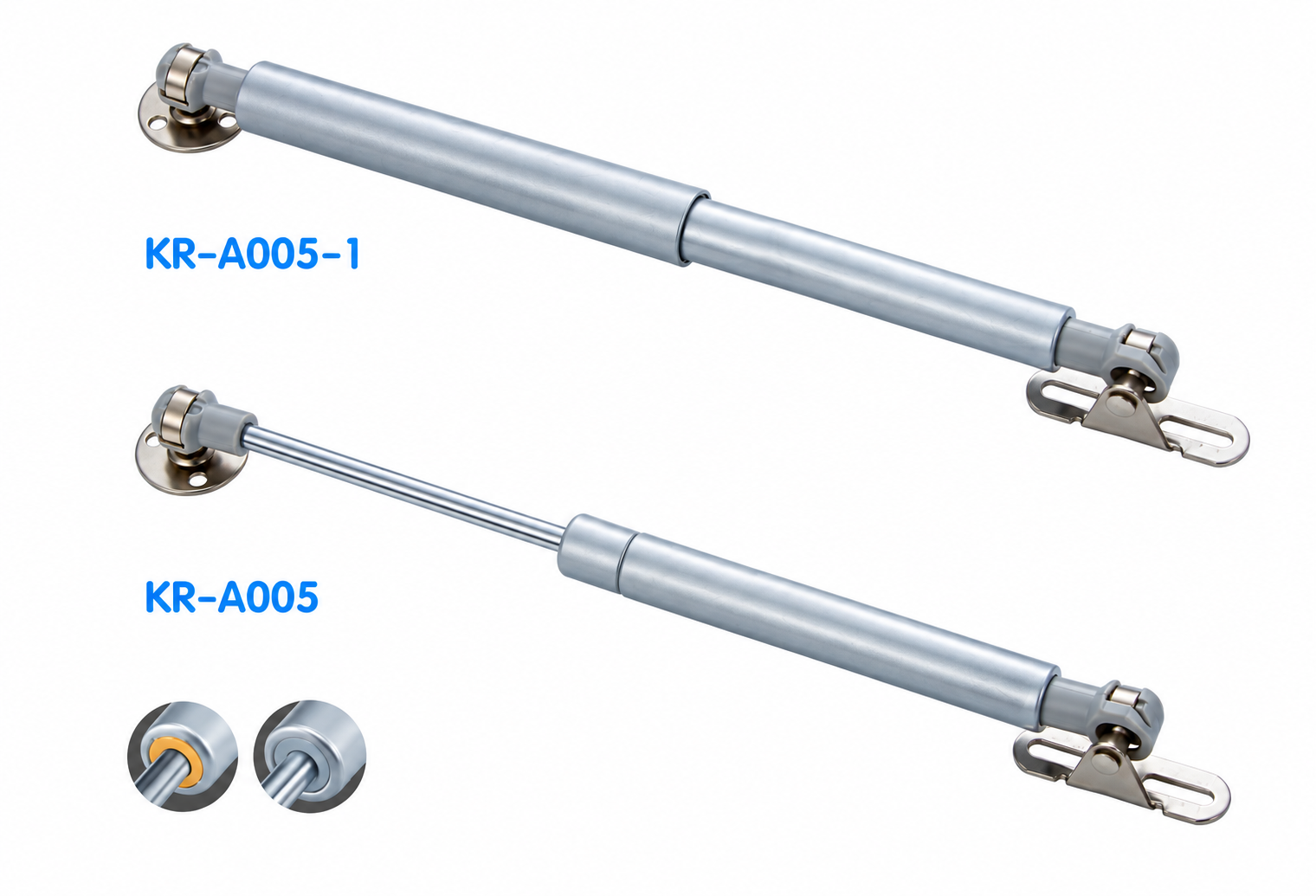

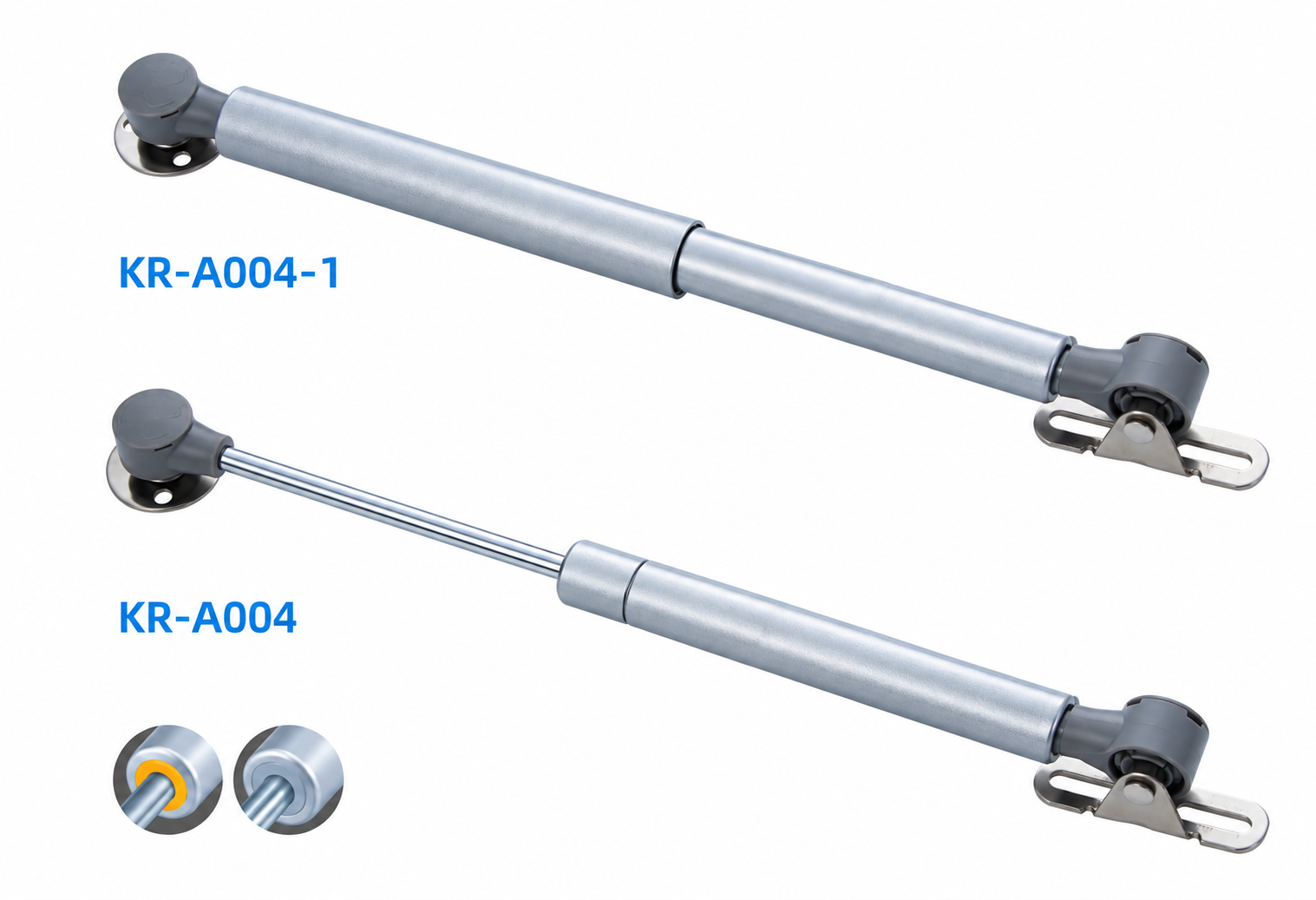

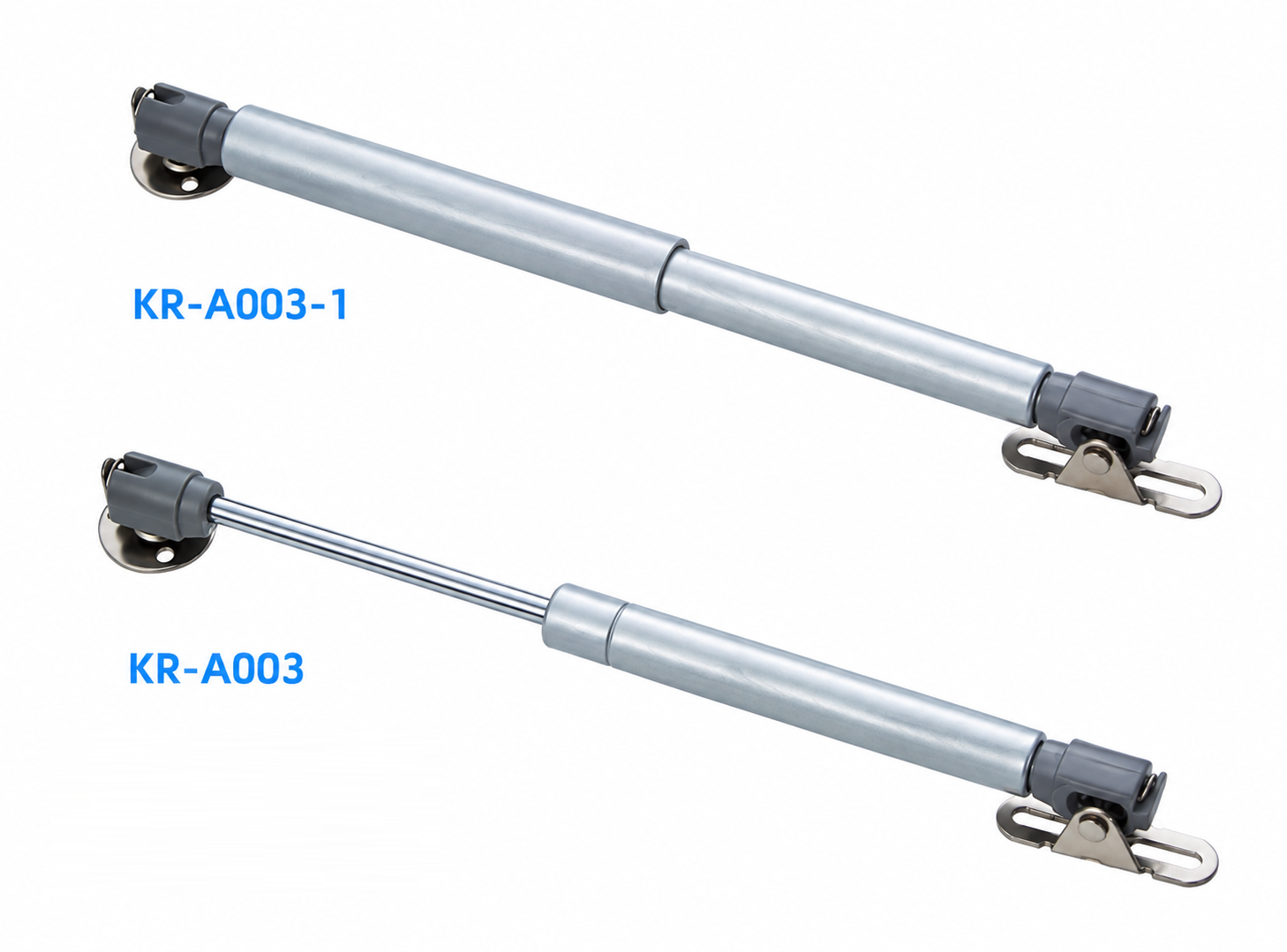

KR-A001 / KR-A003 / KR-A004 / KR-A005
Model variants
KR-A001 / KR-A003 / KR-A004 / KR-A005
Specifications
| Models | KR-A001 / KR-A001-1 / KR-A003 / KR-A003-1 / KR-A004 / KR-A004-1 / KR-A005 / KR-A005-1 |
|---|---|
| Force range | 20–300 N |
| Service life | 80,000 cycles |
| Available sizes | 6″ / 8″ / 10″ / 12″ |
| Available colours | Gold, silver, titanium, black, white |
| Piston rod finish | Chrome plated |
| Tube finish | Chrome plated / painted |
| Main materials | Plastic, iron, copper and steel |
6″–12″
Dimensions by size
| Nominal size | Tube length | Stroke | Centre distance |
|---|---|---|---|
| 6″ | 83 mm | 50 mm | 168 mm |
| 8″ | 88 mm | 55 mm | 178 mm |
| 10″ | 120 mm | 90 mm | 245 mm |
| 12″ | 137 mm | 107 mm | 280 mm |
245 mm centre distance and 90 mm stroke apply to the 10″ size. Check the selected size before drilling or ordering.
A–F

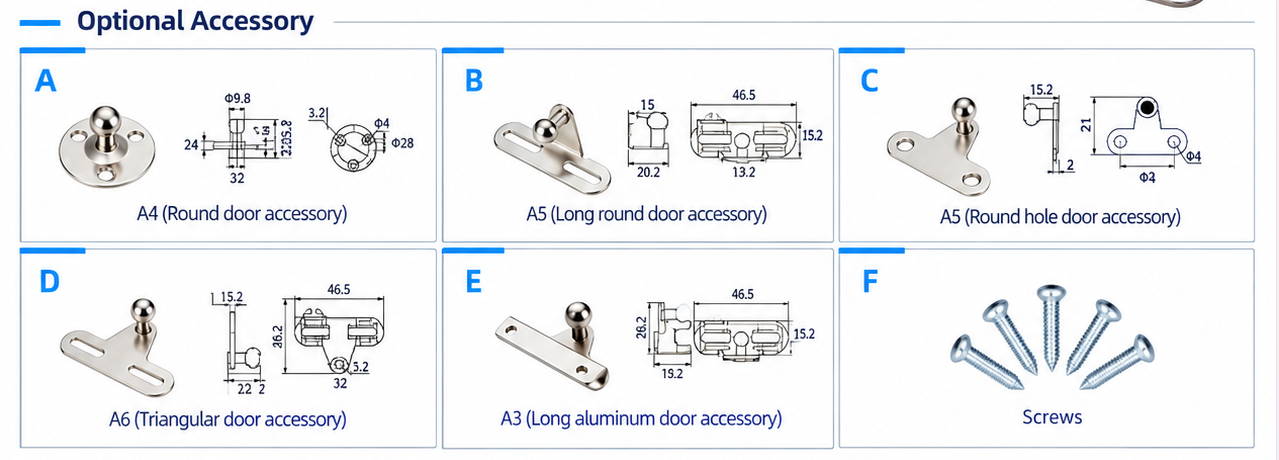

Optional fittings
- A · A4 right-angle aluminium-door fitting
- B · A5 slotted right-angle fitting
- C · A5 round-hole aluminium-door fitting
- D · A6 right-angle aluminium-door fitting
- E · A3 slotted aluminium-door fitting
- F · Screw set
KR-A001 / KR-A003 / KR-A004 / KR-A005

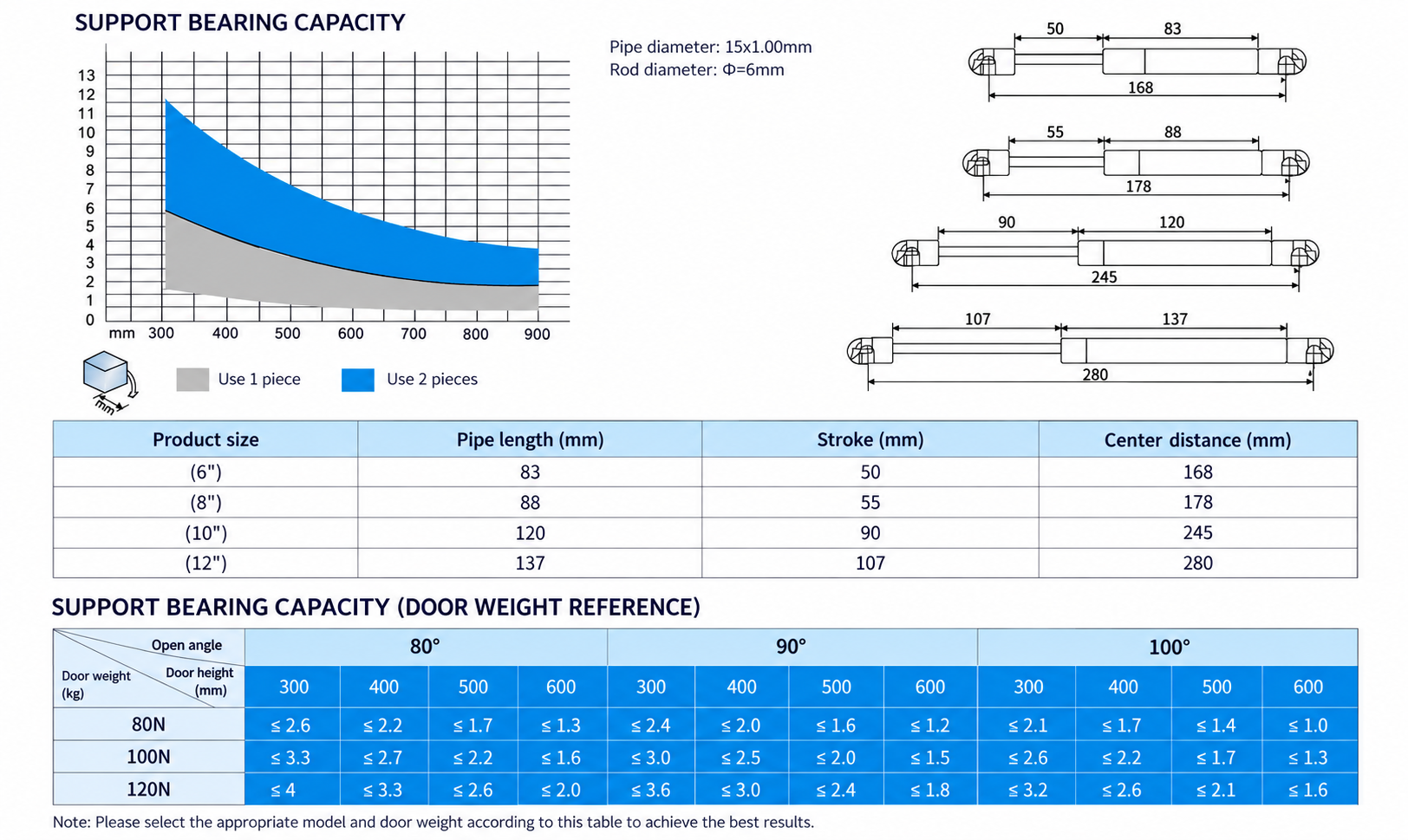

Sizing and load reference
ZivGrid

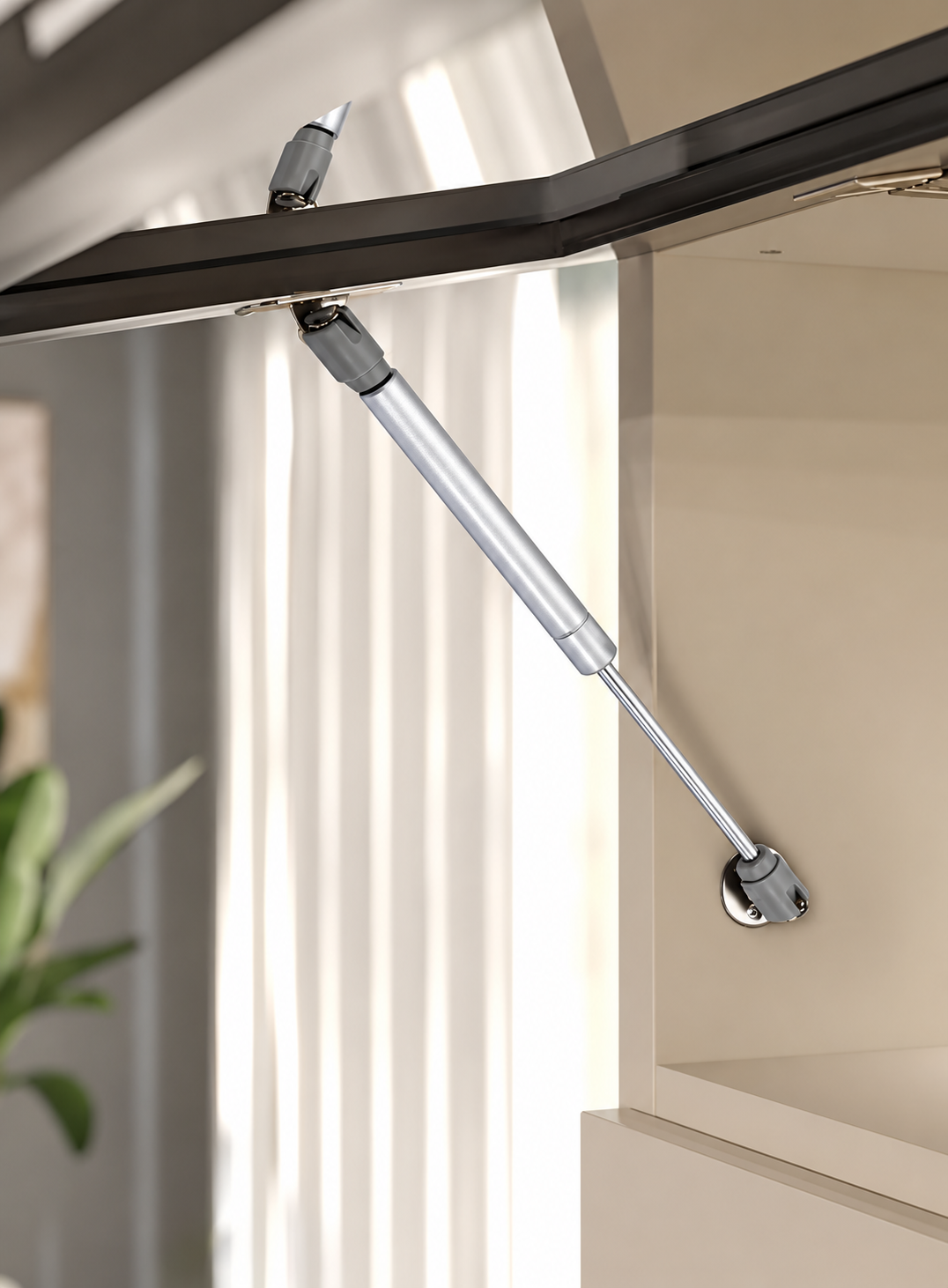

Installation example
Need a configuration or quotation?
Tell us the model, size, force, colour, fitting code and expected quantity.
