3-Fold Full Extension Undermount Drawer Slide, Pin Release Type, Soft Close
ZG-DSU2-10 is a concealed undermount slide with full extension, hydraulic soft close and metal pin quick release. Height-only 1D adjustment; 250–500 mm lengths.
ZG-DSU2-101DSoft close
ZG-DSU2-10
Technical specifications
| Model | ZG-DSU2-10 |
|---|---|
| Mounting / extension | Concealed undermount · 3-fold, 100% full extension |
| Function | Built-in hydraulic soft-close damper; metal pin quick release |
| Length options | 250 / 300 / 350 / 400 / 450 / 500 mm (10″–20″) |
| Material / rail-sheet thickness | Cold-rolled steel; 1.0 / 1.5 / 1.8 mm options |
| Rated load | 35 kg per pair; heavy-duty option 40–45 kg per pair |
| Cycle life | ≥50,000 open-close cycles |
| Finish | Zinc plated / optional black powder coating |
| Drawer side panel | 16 or 18 mm; maximum 18 mm |
| Adjustment | 1D: height 0 to +3 mm only |
ZG-DSU2-10
Lengths & drawer cutting reference
| Nominal size | Rail length (NL) | Recommended drawer depth |
|---|---|---|
| 10″ | 250 mm | 240 mm |
| 12″ | 300 mm | 290 mm |
| 14″ | 350 mm | 340 mm |
| 16″ | 400 mm | 390 mm |
| 18″ | 450 mm | 440 mm |
| 20″ | 500 mm | 490 mm |
Drawer depth = nominal rail length − 10 mm. Drawer bottom width = clear cabinet interior width − 49 mm. Drawer side must extend at least 10 mm below the bottom; provide a Ø6 mm hook hole in the back panel.
Reference dimensions only. Confirm the final drawing and sample before production.
ZG-DSU2-10
Pin release & reinstallation
To remove: extend the drawer fully and release the metal pins on both sides at the same time.
To reinstall: align the positioning holes, seat the drawer, then push both pins back into the locked position.
Reinstallation takes more care than the handle-release version. Frequent end-user removal and reinstallation is not recommended.
ZG-DSU2-10

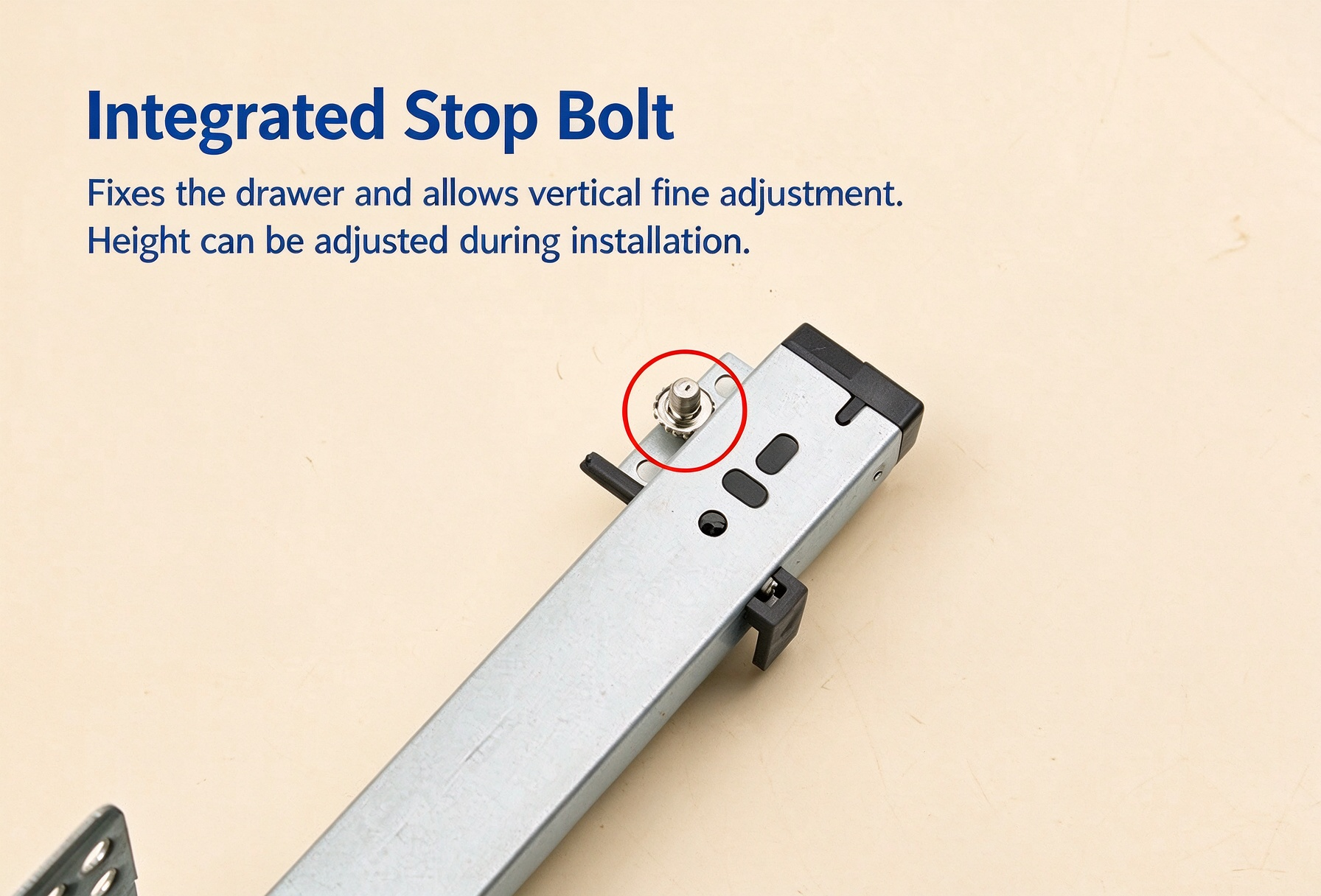

1D height adjustment
Height 0 to +3 mm only, for fine adjustment of the drawer-front vertical gap. This pin-release version has no lateral or front-to-back adjustment.
ZG-DSU2-10
Product details

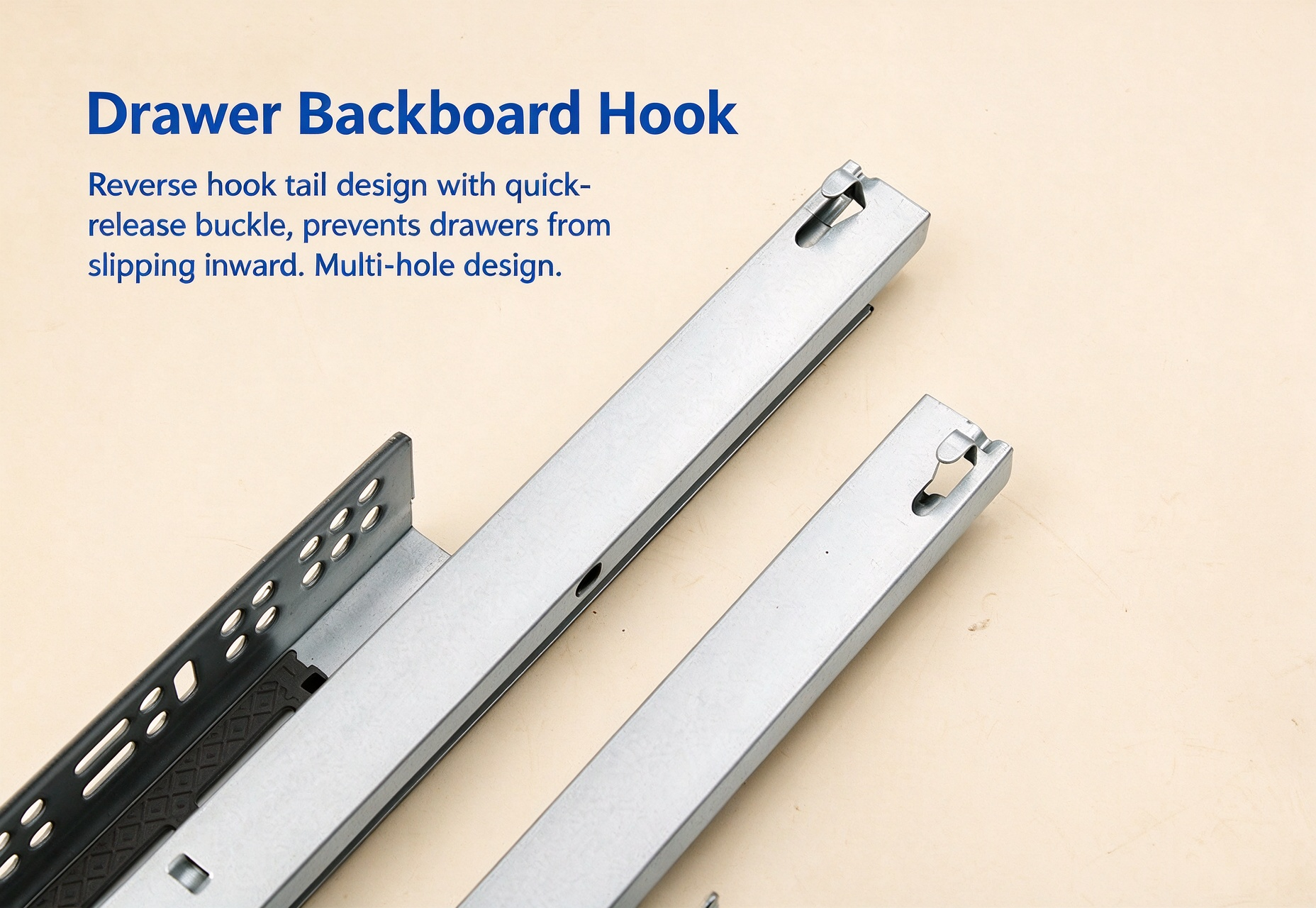

Rear hook

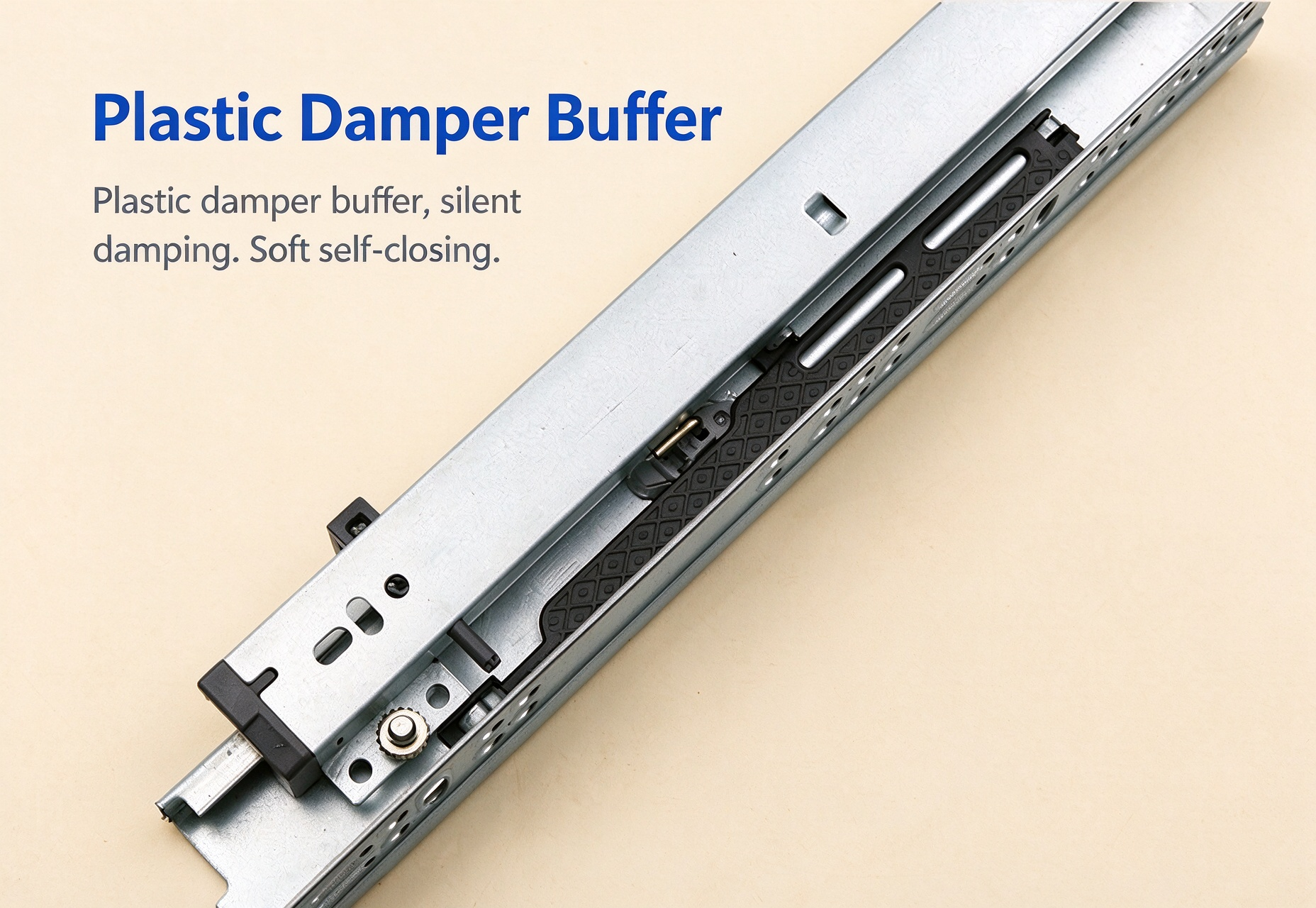

Soft-close assembly
ZG-DSU2-10

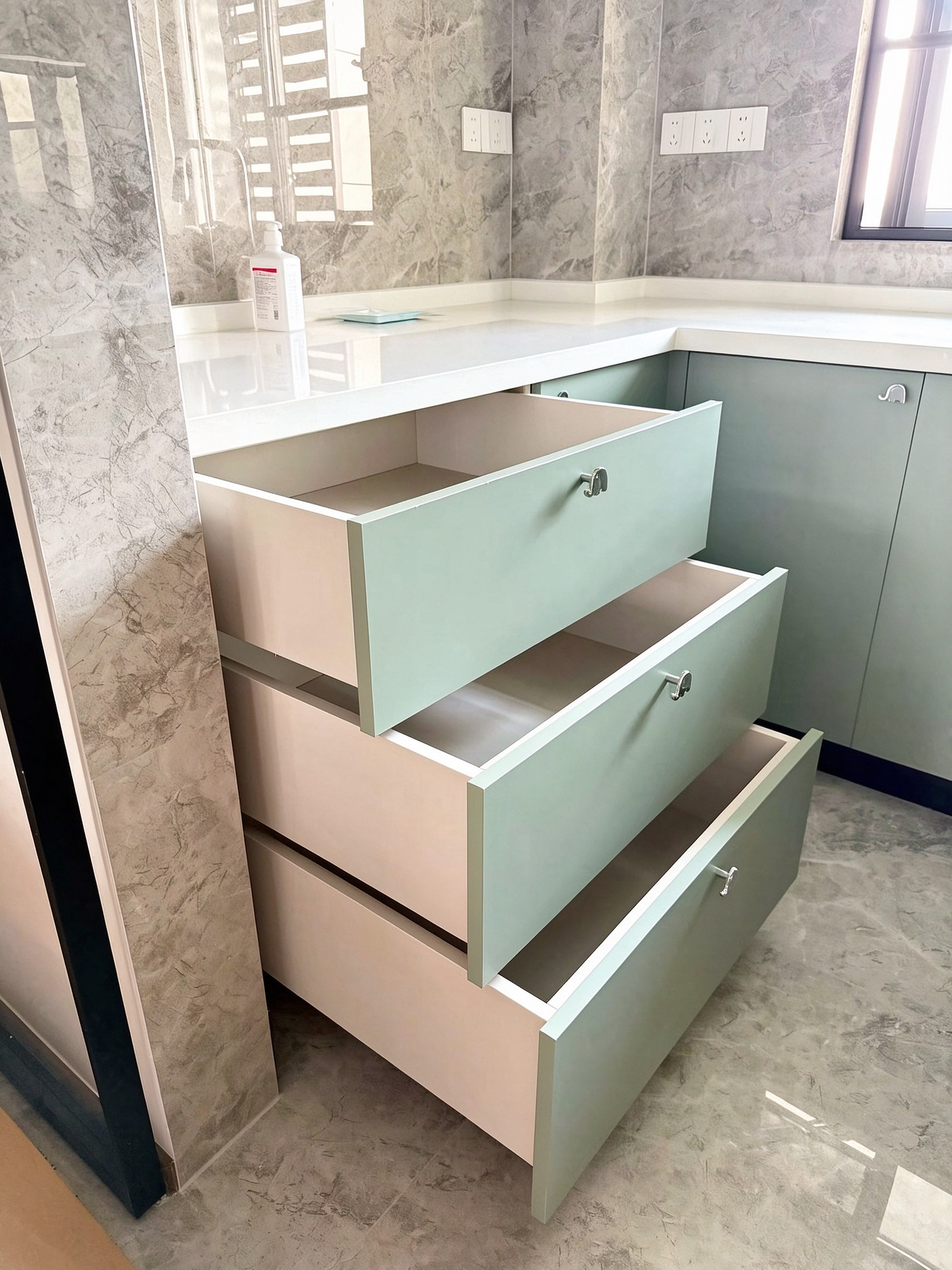

Application
ZG-DSU2-10
Cabinet setting
Need a configuration or quotation?
Please send the length, load grade, finish and quantity for ZG-DSU2-10.
