KR-A010 / KR-A011
Industrial Gas Spring / Heavy Duty Gas Strut
Custom-size KR-A010 and KR-A011 industrial gas springs with 100–1000 N force and optional end fittings.
100–1000 NCustomizable
Select the force, extended length, stroke, diameters and end fittings for the installation. The two models shown have different mounting configurations.
KR-A010 / KR-A011
Product specifications
| Size | Customizable |
|---|---|
| Force | 100–1000 N |
| Installation centre distance L | 30–300 mm (Customizable) |
| Stroke S | Customizable |
| Cylinder diameter D2 | 10–28 mm |
| Piston rod diameter D1 | 6–14 mm |
| Piston rod finish | Chrome plated |
| Cylinder finish | Chrome plated / painted |
| Main materials | Plastic, iron, copper and steel |
D1 · D2 · S · L
Dimensions and end fittings
KR-A101–KR-A115
Optional accessories
Choose a suitable end fitting or bracket for the mounting geometry. The reference image shows accessory models KR-A101–KR-A115; confirm compatibility with the chosen gas spring before ordering.
KR-A010 / KR-A011

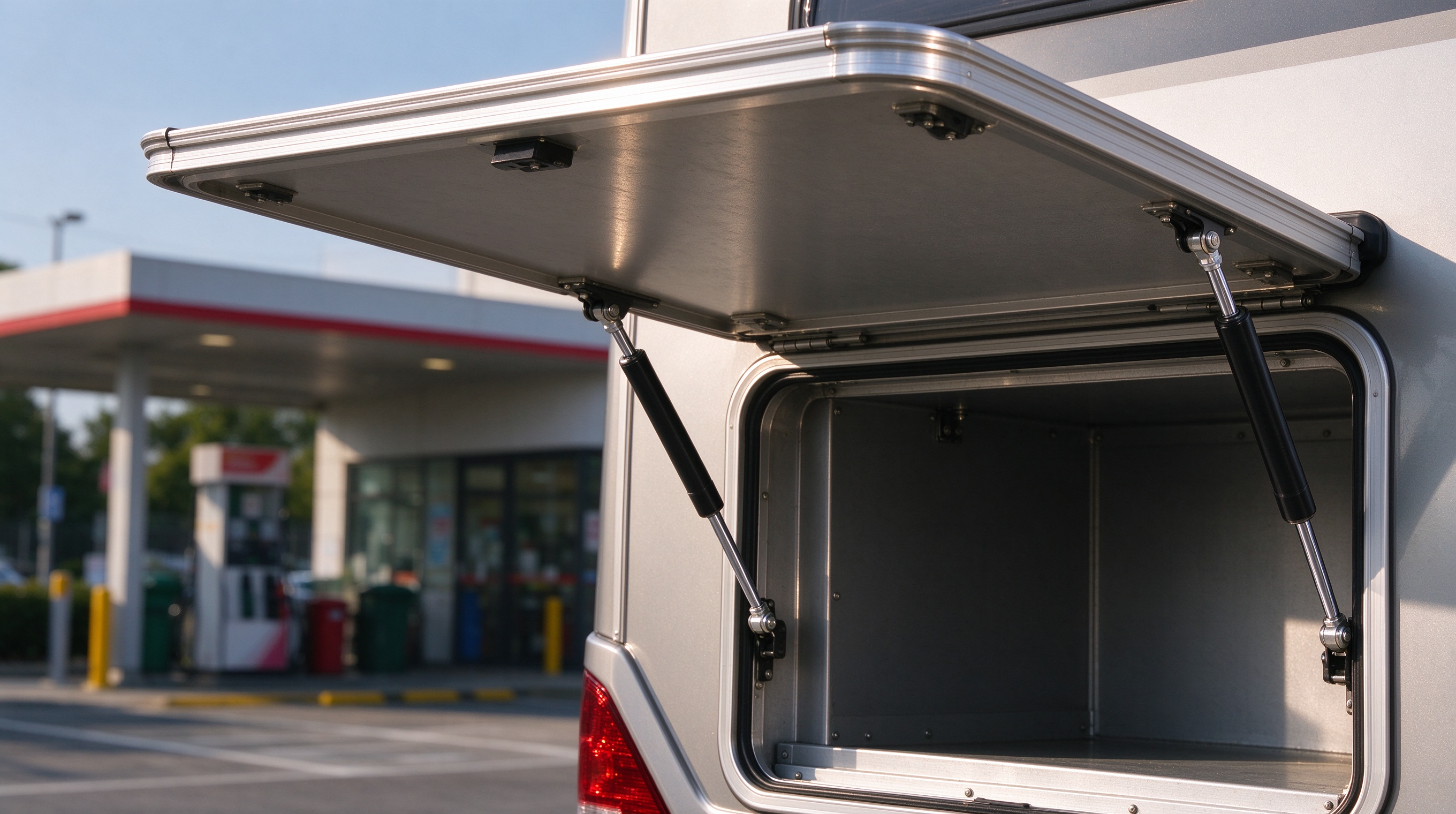

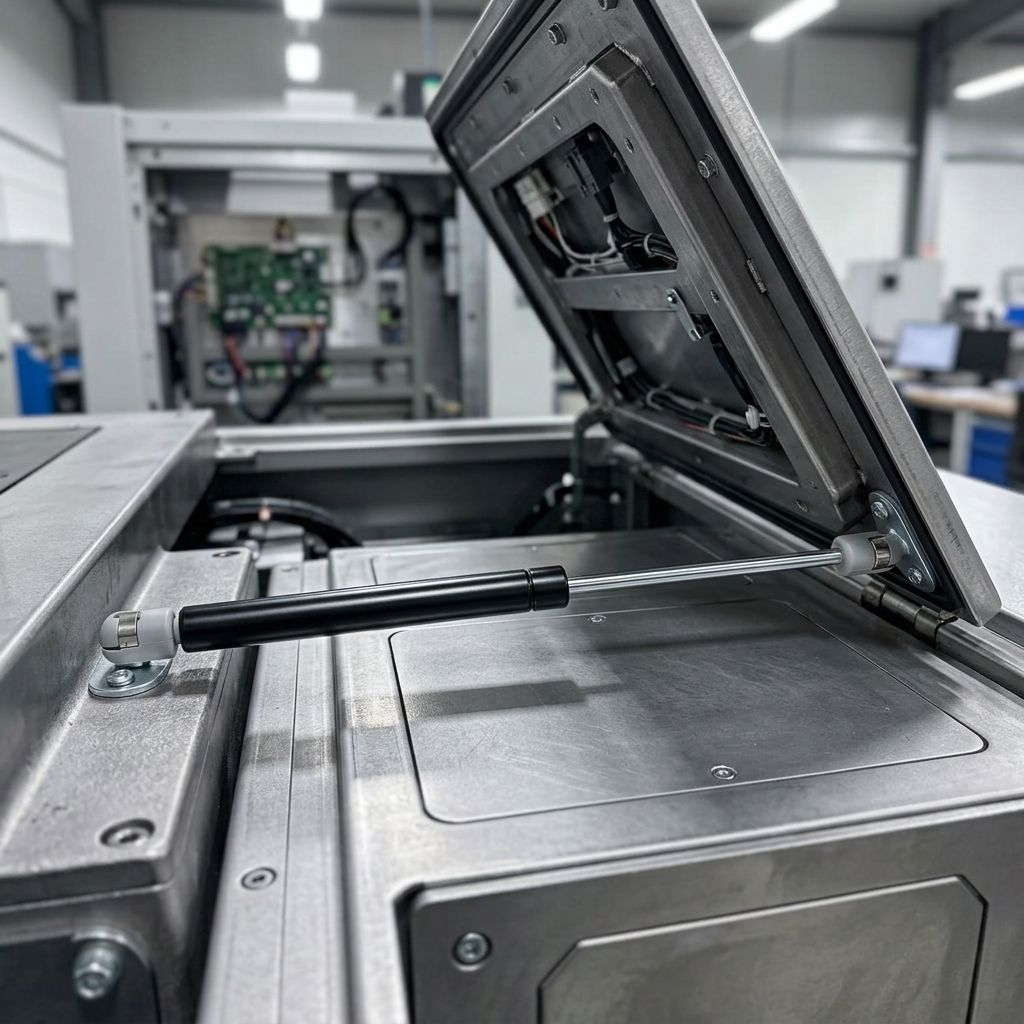

Application examples
Illustrative installation examples. Determine force and mounting points from the actual lid weight, travel and geometry.
Need a custom configuration?
Send the intended use, required force, centre distance, stroke, diameters, end fittings and quantity.
