KR-A002 / KR-A002-1
Gas Spring / Cabinet Gas Strut
KR-A002 and KR-A002-1 gas springs support cabinet lift-up doors and other furniture panels. Select the force, size and mounting base for your application.
20–300 N6″–12″80,000 cycles
Two model variants are pictured. Confirm the required force, length, colour and mounting base before ordering.
KR-A002 / KR-A002-1
Specifications
| Models | KR-A002 / KR-A002-1 |
|---|---|
| Force range | 20–300 N |
| Service life | 80,000 cycles |
| Available colours | Gold, champagne, silver, nickel, black, warm black, glossy white |
| Piston rod finish | Chrome plated |
| Tube finish | Chrome plated / painted |
| Main materials | Plastic, iron and steel |
6″–12″
Dimensions by size
| Nominal size | Tube length | Stroke | Centre distance |
|---|---|---|---|
| 6″ | 83 mm | 50 mm | 168 mm |
| 8″ | 88 mm | 55 mm | 178 mm |
| 10″ | 120 mm | 90 mm | 245 mm |
| 12″ | 137 mm | 107 mm | 280 mm |
The 245 mm centre distance and 90 mm stroke belong to the 10″ size. Confirm the selected size and mounting geometry before drilling.
KR-A002 / KR-A002-1

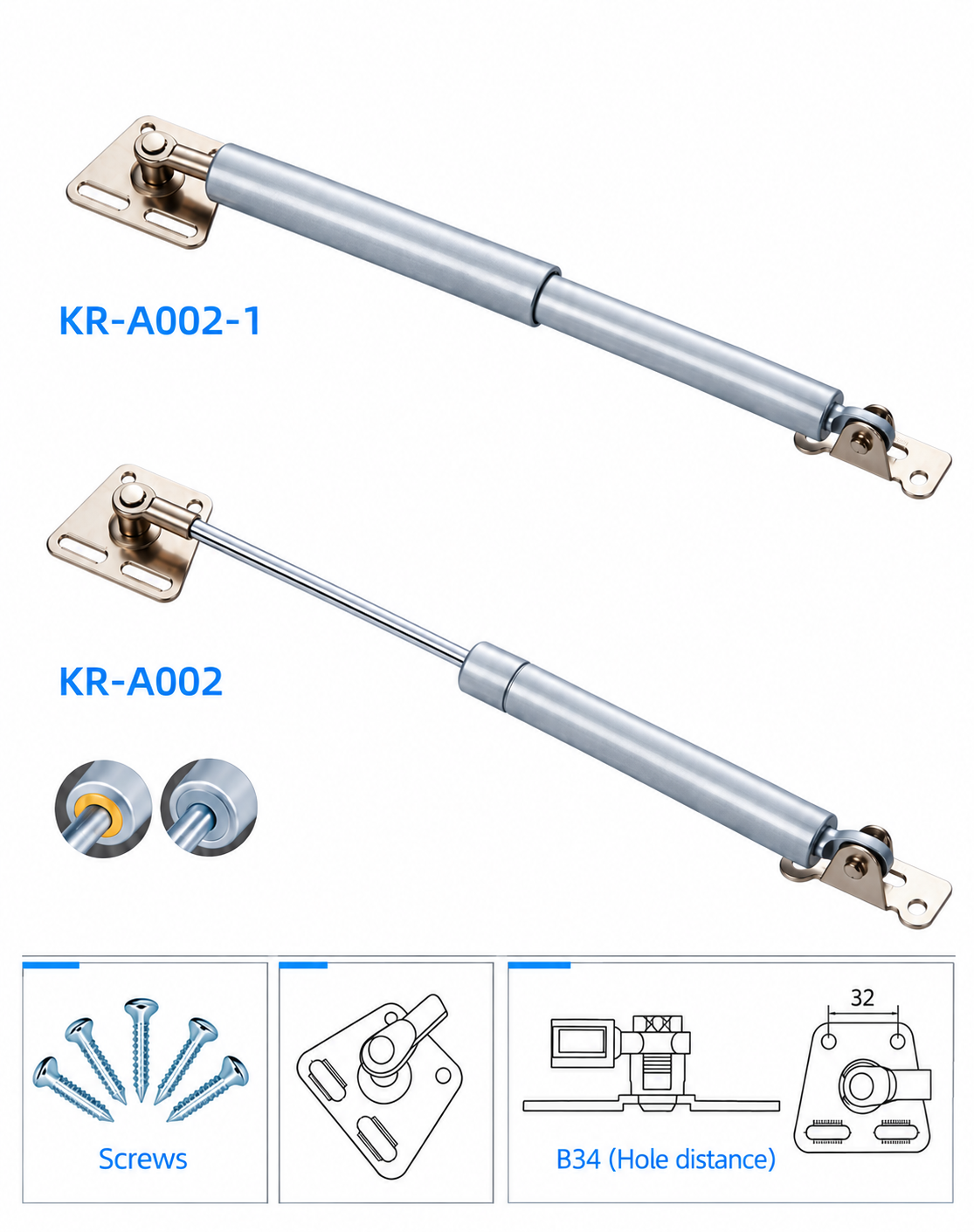

Fittings and model details
Screw set supplied; optional 8×3/4-hole mounting base.
KR-A002 / KR-A002-1

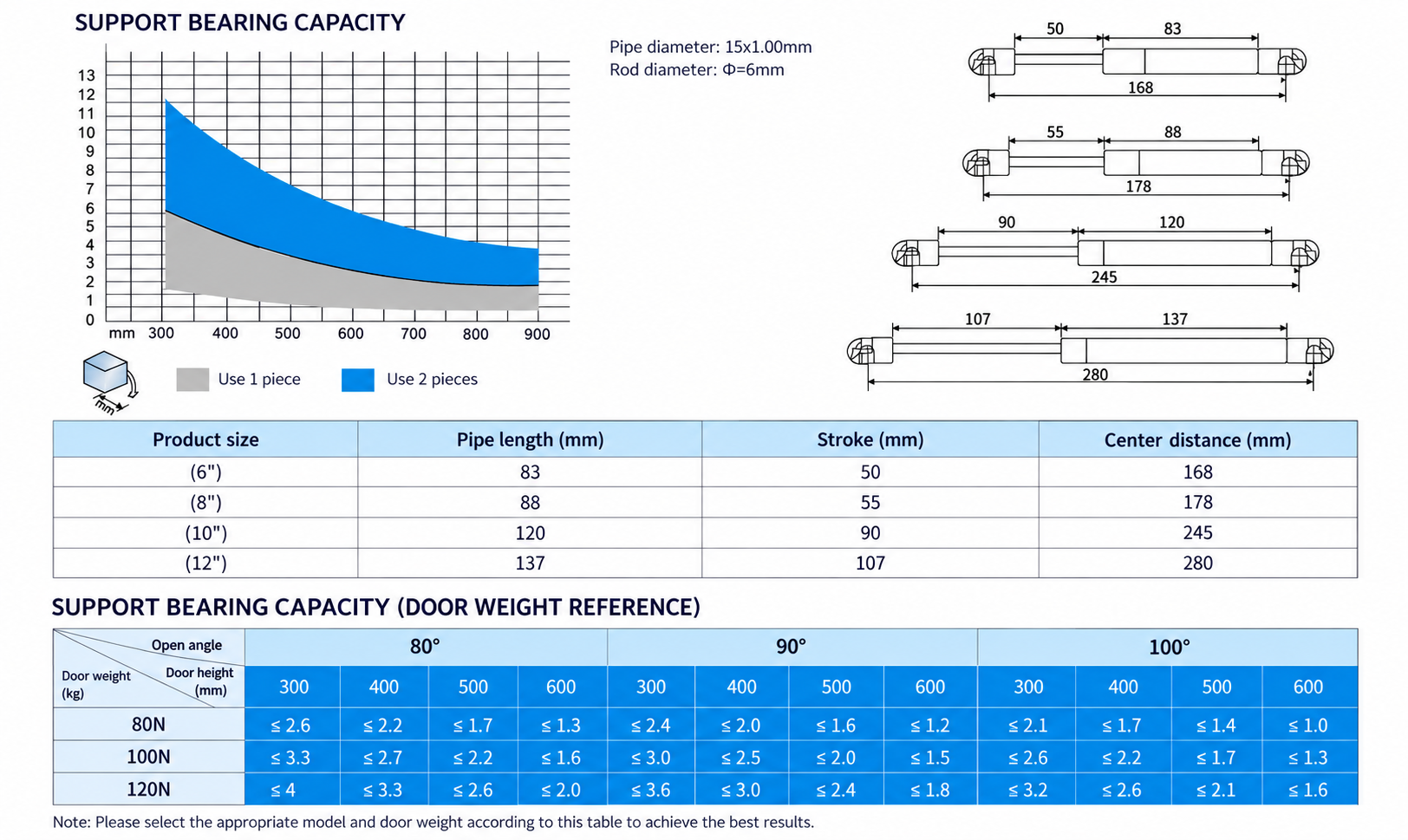

Sizing and load reference
ZivGrid

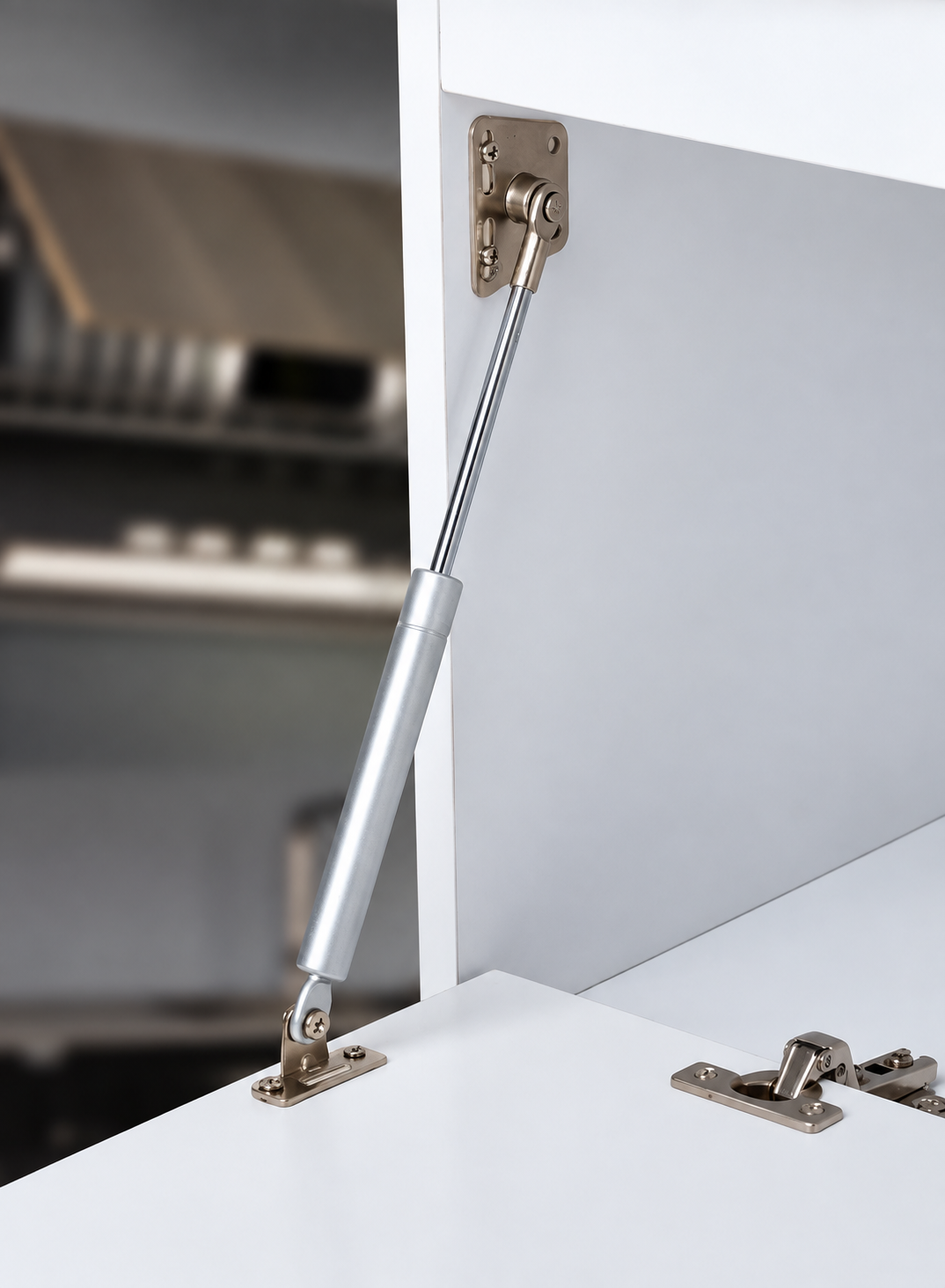

Installation example
Typical applications
Lift-up wall cabinet doors, storage cabinet doors and furniture lids such as tatami storage covers.
Need a configuration or quotation?
Tell us the model, force, size, colour, base option and expected quantity.
